01 Product Description

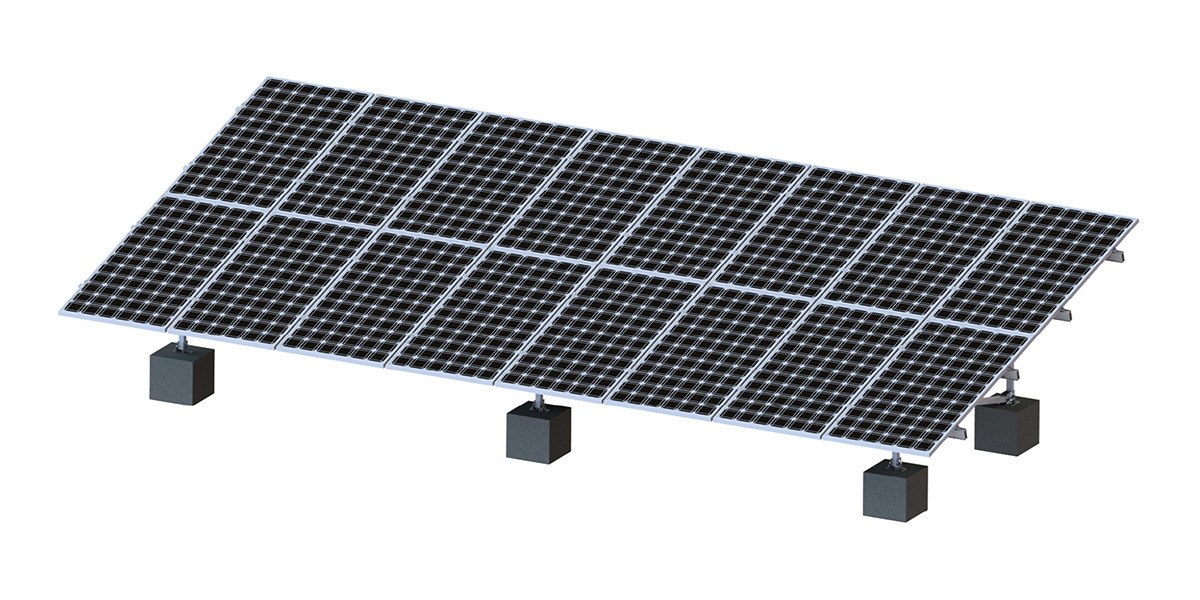

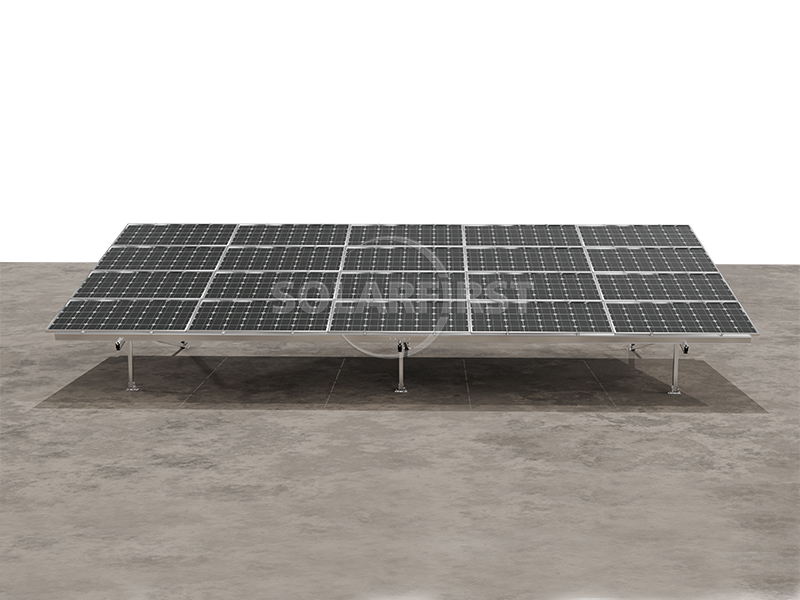

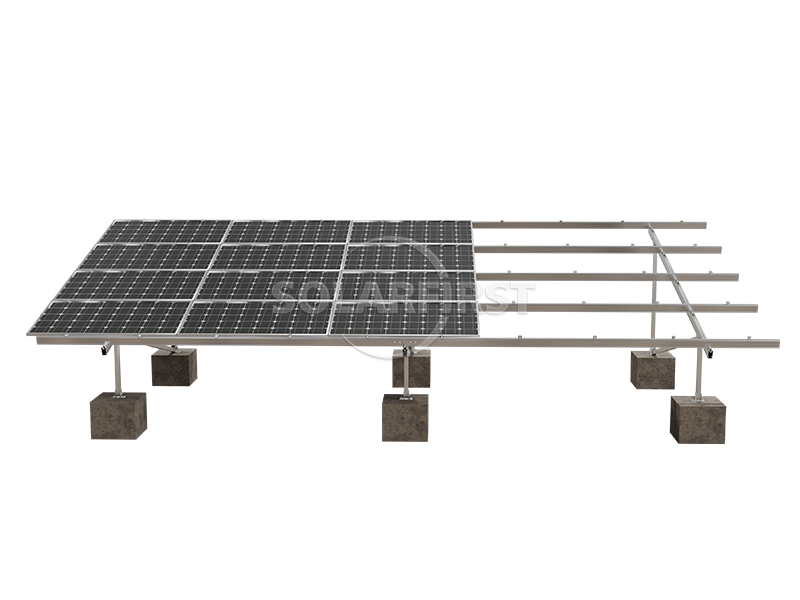

This solar module mounting system is a highly anti-corrosion mounting structure for ground installation with its aluminum alloy 6005 and 304 stainless steel material .
The beams and supports will be pre-assembled on our factory before delivery, to save on site working time. Special base plate design ensures adjustable range on height and front-back direction, to adapt installation site.
Different structure type will be chosen according to site conditions and load requirements.

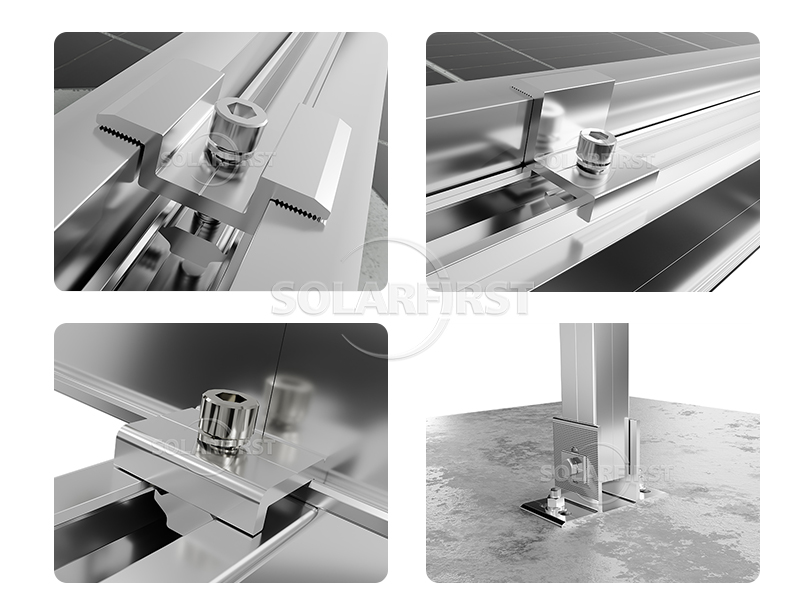

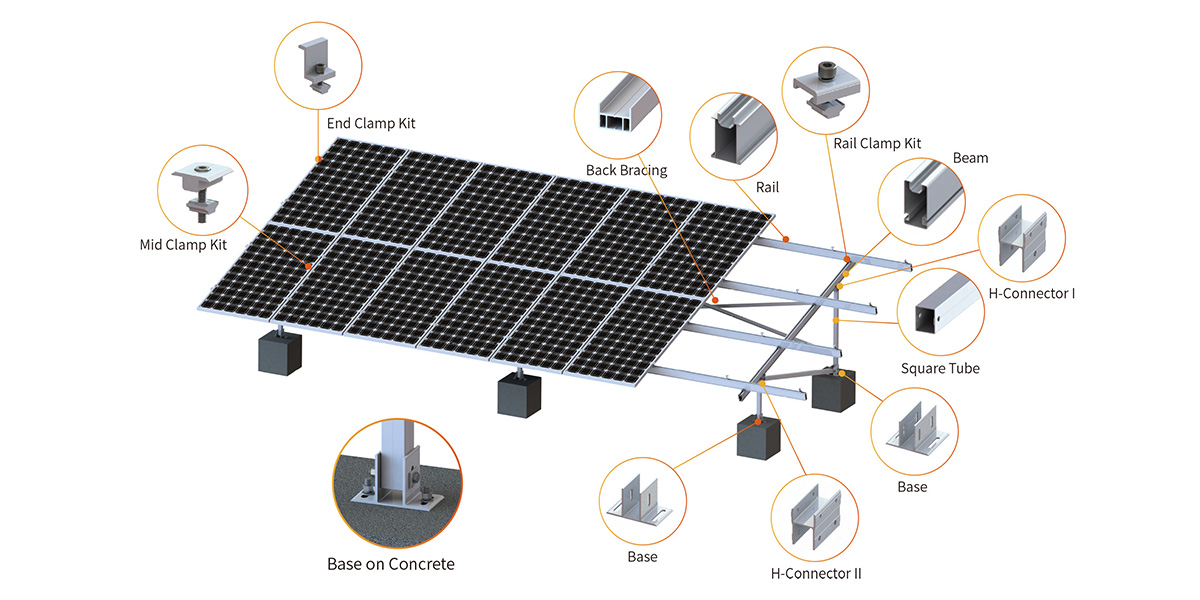

02 Accessory schematic diagram

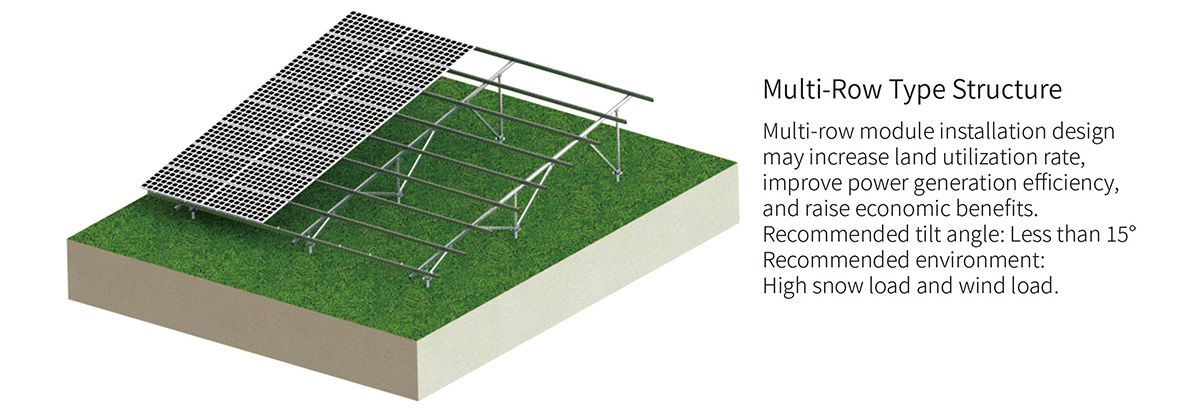

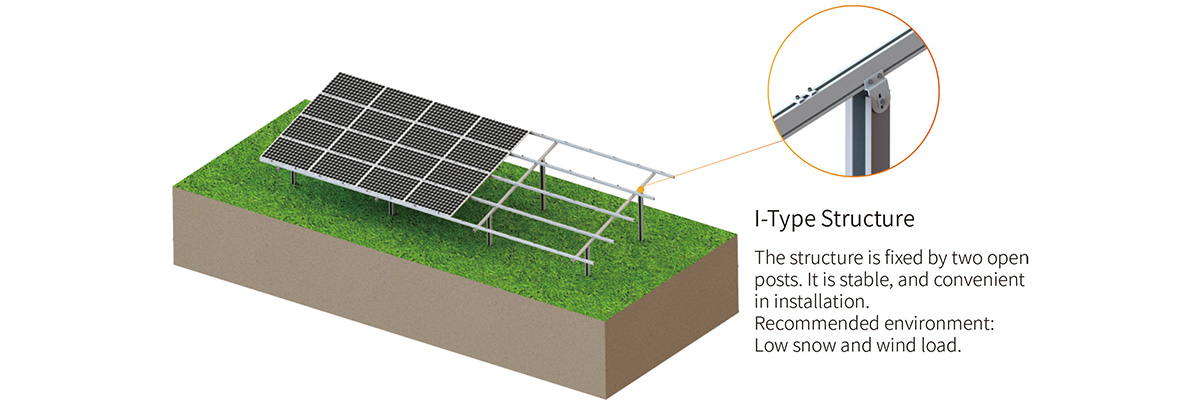

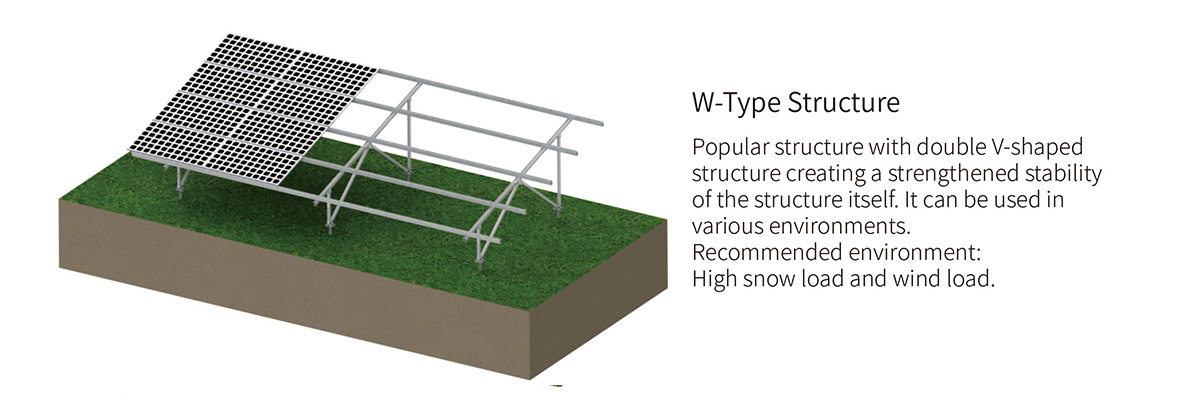

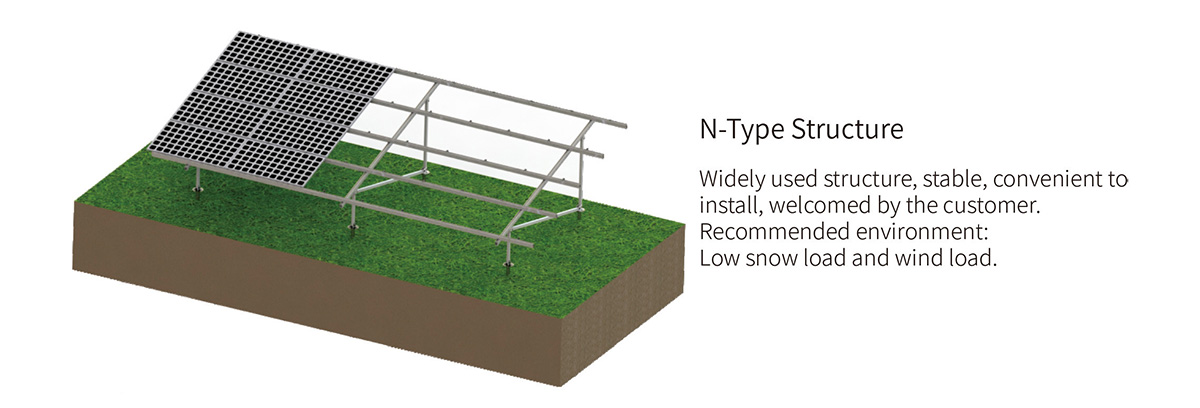

03 Structure
04 Core Engineering Parameters
| Key indicators | Parameter details |
| Applicable roof | Ground |
| Wind load | 60m/s |
| Snow load | 1.4 kN/m² |
| Foundation | Screw Pile / Concrete |
| Main material | GB50009-2012, EN1990:2002, ASCE7-05, AS/NZS1170, JIS C8955:2017,GB50429-2007 |
| standard | Anodized Aluminum AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 |
| Warranty | 10 Years Warranty |
05 Industry Application Scenarios
✔ Ground-mounted photovoltaic power stations in plains/hills
✔ Desert/tidal flat photovoltaic farm

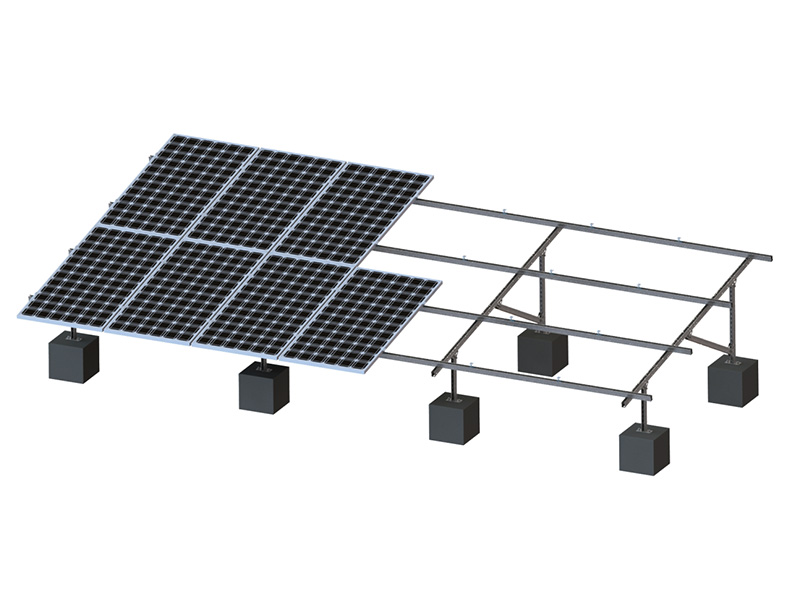

✔ Utility-scale Photovoltaic park
06 Professional technical services
▶ Solution design and structural analysis:
Provide customized solution drawing, load calculation reports (including wind load/snow load/seismic force analysis) or assembly drawing.
▶ On-site survey:
Engineers conduct on-site investigations ground conditions with local soil investigation professionals.
▶ Installation training and guidance:
Provide installation videos, installation manuals and on-site installation guidance to ensure safe and complete installation.
07 Technical verification system
Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.
07 Technical verification system
▶ Extreme environmental testing
• Pass the low-temperature impact at -40℃
• Salt spray corrosion (3,000 + hours)
• Extreme tests such as 60m/s hurricane simulation.
▶ Third-party certification
• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.
08 Packages & Shipping
International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.
09 Project Case
Solar First's ground-mounted solar system is an east-west adjustable, pre-assembled bracket solution designed for large commercial and utility ground-mounted solar installations. It utilizes a durable helical pile foundation, ensuring rapid deployment, robust structural support, and long-term corrosion resistance.
